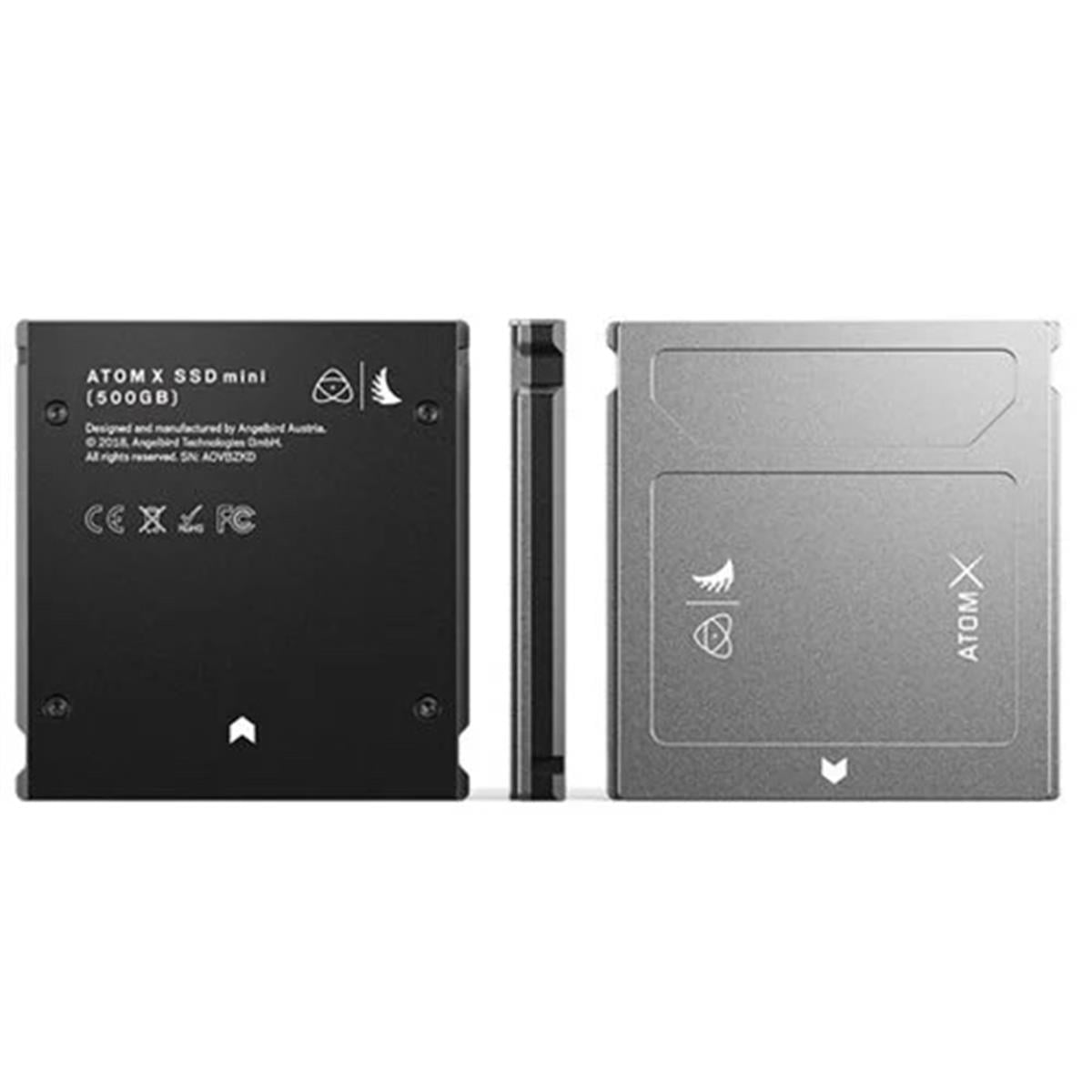

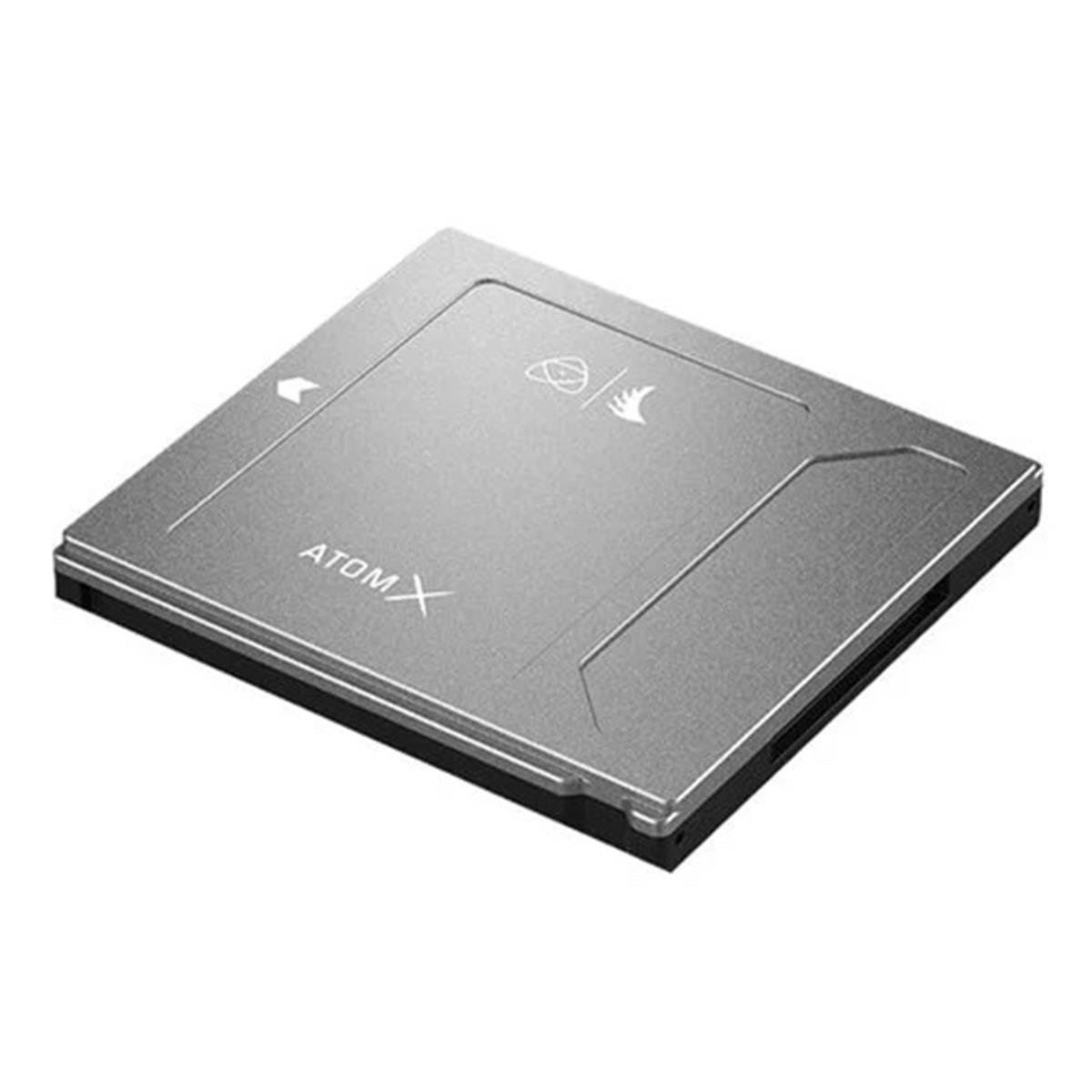

Angelbird AtomX SSDmini (500 GB)

CAPACITY

500 GB

FORM FACTOR

SSDmini

Compatible with *

DIMENSIONS

80.0 x 75.5 x 9.3 mm (3.15 × 2.97 x 0.37 in)

AĞIRLIK

~ 90.0 g | ~ 3.2 oz

SEQUENTIAL READ SPEED

560 MB/s

SEQUENTIAL WRITE SPEED

540 MB/s

ACCESS TIME (R/W)

~ 65 µs | 40 µs

Reliability

MTBF

2,400,000 hours

DATA RELIABILITY

Built-in EDC | ECC function

DATA RETENTION

10 years at 25°

ENDURANCE

2 TB: up to 6,000 TBW

CERTIFICATIONS

RoHS, CE and FCC compliant, REACH

Electrical

DC INPUT VOLTAGE

5 V ± 10 %

POWER USAGE (IDLE/MAX)

2 TB: 0.35 W / 3.5 W

Technical

INTERFACE

SATA 6 Gb/s, 3 Gb/s and 1.5 Gb/s supported,

SATA 3.0 compliant

OVER PROVISIONING

~ 9 %

FEATURES

Temperature sensor, overload protection, TRIM, ECC, EMS protection, built-in cache, SMART, NCQ

Environmental

SHOCK RESITANCE (OPERATING)

1000 G/0.5 ms

VIBRATION RESISTANCE (OPERATING)

2.17 GRMS

OPERATING TEMPERATURE

-20 °C | 70 °C

STORAGE TEMPERATURE

–40 °C | 85 °C

OPERATING HUMIDITY

5 % to 95 % non-condensing

*Compatibility list

NINJA V | NINJA FLAME | NINJA INFERNO | SUMO 19* | SUMO 19M* | SHOGUN FLAME | SHOGUN INFERNO | SHOGUN STUDIO*

*SUMO 19 / 19M & SHOGUN STUDIO require to use the Atomos SSDmini adapter handle.

Supported Codecs

4k60p 2k240p Apple ProRes / Avid DNx 5.7k30p 4k60p 2k240p Apple ProRes RAW

4k30p CDNG

Package Content

• AtomX SSDmini

• Activation code for the full limited warranty
